Circuit breakers are essential electrical protection devices that automatically interrupt the flow of electricity in case of overloads, short circuits, or faults, ensuring safety and preventing damage to electrical systems. Different types of circuit breakers are used based on voltage levels, applications, and protection requirements.

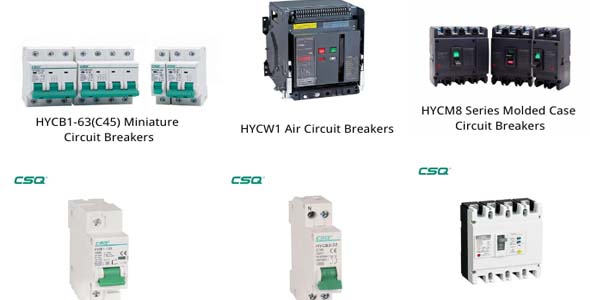

MCBs are small, low-voltage circuit breakers designed for residential, commercial, and industrial applications to protect electrical circuits from overloads and short circuits.
✅ Rated Current: Up to 125A
✅ Voltage Rating: Up to 415V
✅ Trip Mechanism: Thermal-magnetic operation
✅ Applications: Homes, offices, small businesses, and low-power industrial circuits
✅ Advantages:
MCCBs offer higher current ratings and enhanced protection compared to MCBs, making them suitable for industrial and commercial power systems.
✅ Rated Current: 16A to 1600A
✅ Voltage Rating: Up to 1000V
✅ Trip Mechanism: Thermal-magnetic and electronic trip options
✅ Applications: Industrial facilities, commercial buildings, and heavy electrical loads
✅ Advantages:
ACBs are used in high-voltage applications where they provide advanced protection and control for large electrical systems.
✅ Rated Current: Up to 6300A
✅ Voltage Rating: Up to 690V
✅ Trip Mechanism: Electronic protection with adjustable settings
✅ Applications: Power plants, data centers, and large industrial systems
✅ Advantages:
VCBs use vacuum technology to interrupt high-voltage electrical circuits, ensuring efficient and arc-free switching in medium-voltage applications.
✅ Rated Current: Up to 4000A
✅ Voltage Rating: 3.3kV to 36kV
✅ Trip Mechanism: Vacuum arc extinction technology
✅ Applications: Power stations, substations, and industrial plants
✅ Advantages:
SF6 Circuit Breakers use sulfur hexafluoride (SF6) gas as an insulating and arc-extinguishing medium, offering superior performance in high-voltage applications.
✅ Rated Current: Up to 8000A
✅ Voltage Rating: 36kV to 800kV
✅ Trip Mechanism: SF6 gas insulation and arc quenching
✅ Applications: High-voltage transmission lines, grid substations, and power distribution networks
✅ Advantages:
Selecting the appropriate circuit breaker ensures:
✔ Protection against overloads, short circuits, and electrical faults
✔ Reliability for safe and uninterrupted power supply
✔ Energy Efficiency by reducing power wastage and electrical hazards
✔ Long-Term Cost Savings by preventing equipment damage and downtime
At Electric Panel Store, we provide a wide range of circuit breakers tailored to different industries and power systems. Our products meet international safety standards and offer superior reliability.
